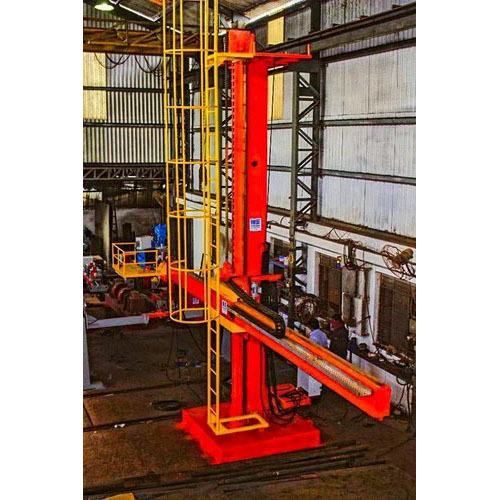

MOGRA 2.5Mx3M Welding Column And Boom (Pedestal Type)

MOGRA 2.5Mx3M Welding Column And Boom (Pedestal Type) Price And Quantity

• Minimum Order Quantity 1 Set
• Price 650000 INR/Set

MOGRA 2.5Mx3M Welding Column And Boom (Pedestal Type) Product Specifications

• Automation Grade Semi-Automatic
• Power 3.5 kW
• Application Industrial Welding Automation
• Rated Current 15 A
• Condition New
• Voltage 415 V
• Power Consumption 3.5 kW per Cycle
• Diameter Max Rotation Diameter 3000 mm
• Frequency 50 Hz
• Phase Three Phase
• Power Source Electric
• Welding Suitable for SAW and MIG welding processes
• Equipment Type Welding Column and Boom
• Input Voltage 415 V, 3 Phase
• Product Type MOGRA 2.5Mx3M Welding Column And Boom (Pedestal Type)
• Usage Industrial
• Current Range 60-1000 Amps
• Material Mild Steel
• Motor Type AC Electric Motor
• Rated Capacity Up to 800 kg
• Dimensions Column Height: 2.5m, Boom Length: 3m
• Output Voltage 44 V
• Type MOGRA 2.5Mx3M Welding Column And Boom (Pedestal Type)

• Safety Features Emergency Stop, Limit Switch, Overload Protection
• Column Rotation 180 Degrees Manual/Electrical
• Column Traverse Speed 400 mm/min
• Operational Temperature Range 0°C to 55°C
• Boom Traverse Speed 100-1500 mm/min (Variable)
• Control Panel Digital with Remote Operation
• Mounting Type Pedestal-Fixed
• Boom Elevation Speed 900 mm/min
• Surface Finish Powder Coated / Painted

MOGRA 2.5Mx3M Welding Column And Boom (Pedestal Type) Trade Information

• Delivery Time 10-15 Days
