Product Description

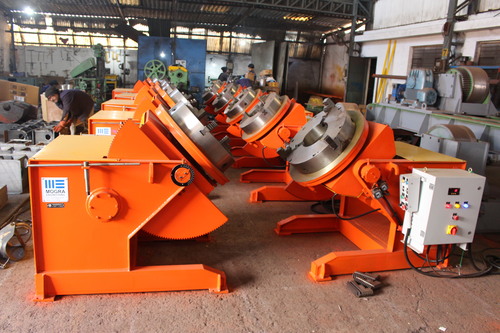

Welding Positioner
Customer- MPP Technology Banglore
- Capacity - 2000 Kgs
- Table Diameter- 1000 mm
- Tilting Range- 0-135 Degree
- Rotation- Variable Speed
- Tilt - Fixed speed
Specification
| Approx. Overall Height ( Table Horizontal) (H) | 2000 mm |
| Approx. Overall Length ( Table Horizontal) (L) | 3000 mm |
| Approx. Overall Width (W) | 2000 mm |
| Capacity | 10MT |
| Center of Gravity | 400 mm |
| Eccentricity | 350 mm |
| Frequency | 50/60 Hz |
| No. of | 8 |
| Phase | Three Phase |
| Rotational Drive Motor | 5 HP |
| Rotational Speed Range | 0.025 to 0.25 Rpm |
| Size Of | M 24 mm |
| Table Size | 2000 mm |
| Tilt Drive Motor | 7.5 HP |
| Tilt Range | 0-135 Degree |
| Tilt Speed (Fixed ) | 0.5 Rpm |
| Voltage | 400-420 V |
| Model Name/Number | 10MT Welding Positioner |
| Usage/Application | Welding Positioner |
Enhanced Welding EfficiencyMaximize your productivity by securely positioning and rotating heavy workpieces using the adjustable tilt and rotation features. Precise digital control and robust safety mechanisms allow for seamless integration into a variety of welding operations, supporting up to 2 tons, while minimizing manual handling.
Modern Control and Safety FeaturesThe welding positioner is equipped with a clear digital display and remote pendant, facilitating straightforward adjustments without direct exposure to moving parts. Its advanced safety systems include an emergency stop and overload protection to ensure operator and equipment safety.
Built for Versatility and DurabilityConstructed from high-grade mild steel with a powder-coated finish, this positioner offers resilience in demanding environments. The inclusion of T-slots for fixture mounting, crane compatibility, and IP54-rated protection emphasizes adaptability for diverse industrial applications.
FAQs of 2 Tone Capacity Welding Positioner:
Q: How does the adjustable tilt angle benefit welding operations?
A: The 0135 adjustable tilt angle allows users to precisely orient the workpiece, improving weld accessibility and quality while reducing the need for manual repositioning. This feature streamlines workflow and enhances workplace safety.
Q: What types of welding can this positioner support?
A: This equipment is suitable for MIG, TIG, SAW, and Arc welding, accommodating a wide current range up to 600 A. Its versatility ensures compatibility with different welding techniques and project requirements.
Q: When should I use the crane-compatible loading method?
A: The crane-compatible loading method is ideal when handling particularly heavy or bulky workpieces up to 2 tons, ensuring safe and efficient placement onto the positioner table without risking manual strain or injury.
Q: Where is the positioner typically installed?
A: Designed for industrial environments, the positioner is usually installed in fabrication shops, welding bays, or manufacturing facilities where precision positioning of large components is required.
Q: What is the process to mount fixtures on the worktable?
A: Fixtures can be easily mounted using the built-in worktable T-slots. Simply align and secure your fixtures within the T-slots to guarantee stable and repeatable workpiece positioning during welding.
Q: Which safety features are included with this welding positioner?
A: The positioner is equipped with an emergency stop button and overload protection system to prevent accidents and component damage, ensuring both operator and equipment safety during operation.
Q: What are the main benefits of using this welding positioner?
A: Using this positioner increases welding efficiency by allowing smooth, controlled rotation and tilt of heavy workpieces. It reduces operator fatigue, improves weld quality, and supports safer, semi-automatic workflow.
