Product Description

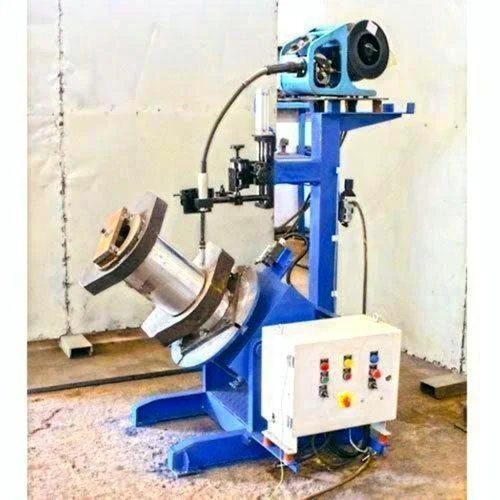

TECHNICAL SPECIFICATIONS WELDINGPOSITIONER
CAPACITY - MODEL-WM-1000
| 1 | Capacity | Kgs | 1000 |
| 2 | Eccentricity | mm | 100 |
| 3 | Center of Gravity | mm | 100 |
| 4 | Rotational Speed Range | Rpm | 0.1 to 1 |
| 5 | Tilt Range | Degree | 0-135 |
| 6 | Tilt Speed (Fixed ) | RPM | 0.3 |
| 7 | Table Size | Diameter | 750 |
| 8 | No.of “T†– Slots | No. | 4 |
| 9 | Size of “T†slots (T Nut size suitable for ) | mm | M 16 |
| 10 | Approx. overall length ( Table Horizontal) (L) | mm | 1000 |
| 11 | Approx. overall height ( Table Horizontal) (H) | mm | 770 |
| 12 | Approx. overall Width (W) | mm | 850 |
| 13 | Rotational drive motor | HP | 0.5 |
| 14 | Tilt drive motor | HP | 0.5 |
| 15 | Controls on panel | - | 1)RYB Indication Lamp, 2) Emergency off push button 3) Mains On/Off Switch 4) pendent with 5 Mtr cable |
| 16 | Controls on pendent | - | 1) Rot. For/Rev. Selector switch 2) Rot. Inch /Run, selector switch 3) Rotation start push button 4) Rotation stop push button 5) Tilt Up push button 6) Tit Down push button |
| 17 | Reduction gear boxes make | - | Premium ( greaves) , Bonvario or Equivalent |
| 18 | Motor make | - | Siemens or Bonvario |
| 19 | Bearings | - | SKF/FAG or Equivalent |
| 20 | Switchgears | - | Siemens / Teknic / L&T or Equivalent |
| 21 | Input supply | | 415 V, 3PHASE, 50 HZ or As per Customer Requirement. |
| 22 | Earthling Assembly | | Provided |
| 23 | Colour | | Deep Orange or As Per Customer Requirement |
| 24 | Body Construction | | Fabricated Through Plates & channel |
| 25 | Job Rotation | | Through Worm Reduction Gear Box , AC Motor & VFD |
| 26 | Jon Tilt | | Through Worm Reduction Gear Box , AC Motor |
| 27 | Safety | | 24 Volt Logic for Operator Safey , Limit Switches & Mechanical Stopper Tilting Movement |
