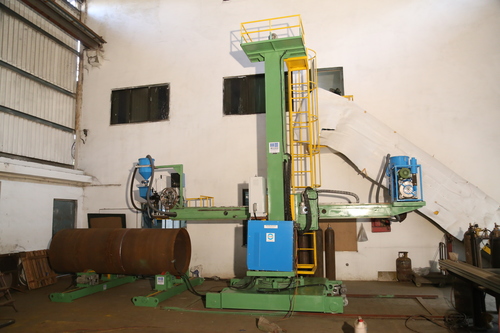

Welding Column And Boom

Name: Welding Column And Boom
Brand: MOGRA ENGINEERING PVT. LTD.
Price: 700000 INR
Availability: InStock

2,00,000 INR/Unit

Get a Price/Quote

Product Details:

Application Heavy fabrication, Pressure vessels, Pipe welding
Diameter Max workpiece diameter up to 7 m (custom)
Output Voltage Up to 44V (depending on welding source)
Welding SAW, MIG, TIG compatible
Power Source Electric
Current Range 50A - 1000A (depending on welding source selection)
Automation Grade Semi-Automatic / Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Welding Column And Boom Price And Quantity

Minimum Order Quantity 1 Unit
Price 2,00,000 INR/Unit

Welding Column And Boom Product Specifications

Current Range 50A - 1000A (depending on welding source selection)
Frequency 50 Hz
Power Source Electric
Dimensions Customizable, typically from 2x2m up to 6x6m stroke
Condition New
Phase Three Phase
Automation Grade Semi-Automatic / Automatic
Power 3 kW - 7.5 kW
Rated Capacity 250 kg - 1000 kg
Output Voltage Up to 44V (depending on welding source)
Diameter Max workpiece diameter up to 7 m (custom)
Rated Current Up to 50A
Application Heavy fabrication, Pressure vessels, Pipe welding
Motor Type Electric
Power Consumption Varies by size, 4 kW - 10 kW
Type Welding Column and Boom
Voltage 220V / 380V / 415V
Welding SAW, MIG, TIG compatible
Input Voltage 415V AC
Equipment Type Welding Automation Equipment
Material Mild Steel / Stainless Steel

Column Stroke 2m to 6m
Boom Stroke 2m to 6m
Rotation Type Motorized rotation (360°)
Travel Speed 100 mm/min to 2000 mm/min
Lift Mechanism Rack and pinion/Lifting chain
Base Structure Robust fabricated steel base
Mounting Fixed, manual or travel carriage
Finish Corrosion-resistance painted/plated
Control System PLC-based with remote pendant
Safety Features Limit switches, anti-fall brakes, overload protection

Welding Column And Boom Trade Information

Supply Ability 3 Unit Per Month
Delivery Time 4-6 Week
