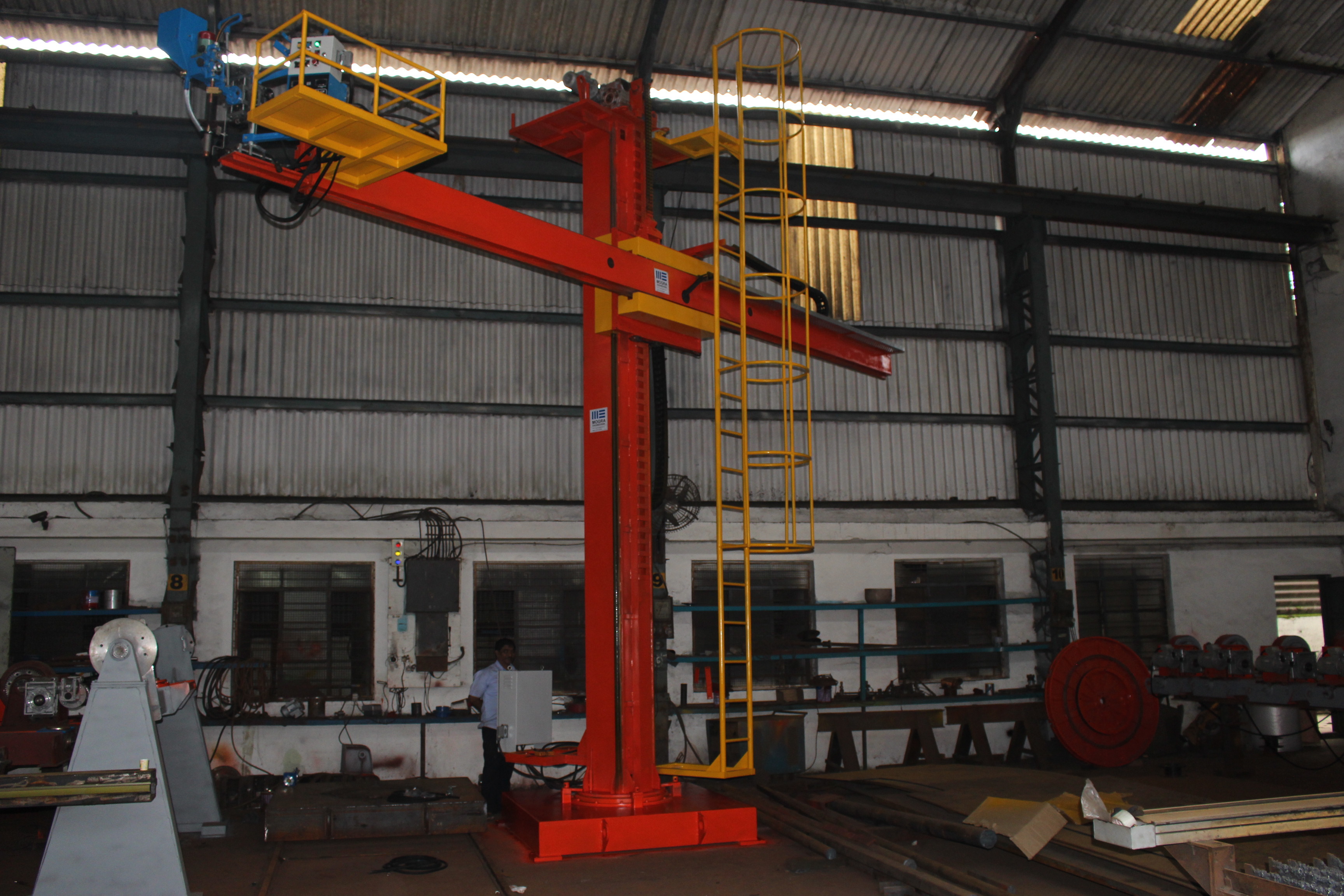

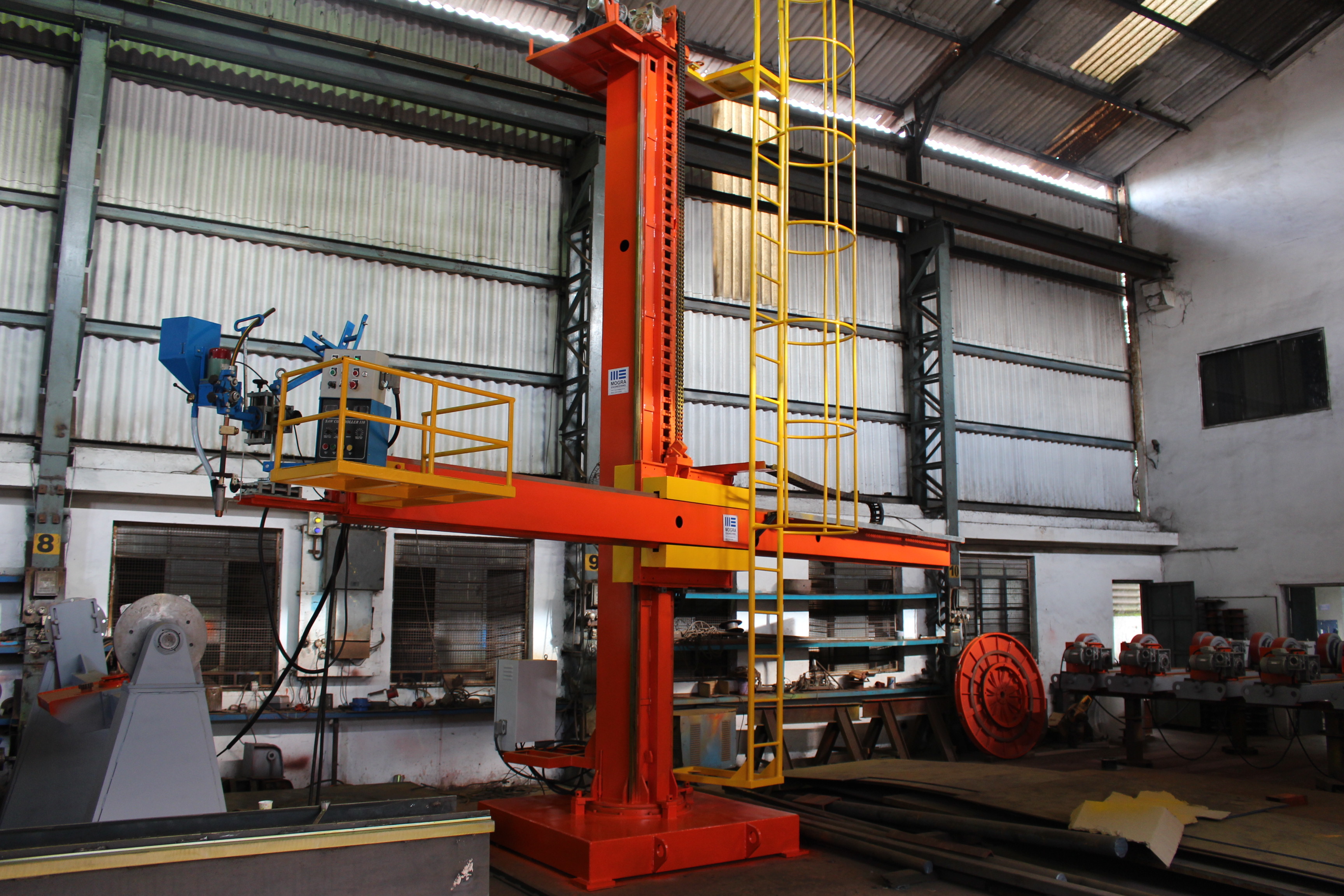

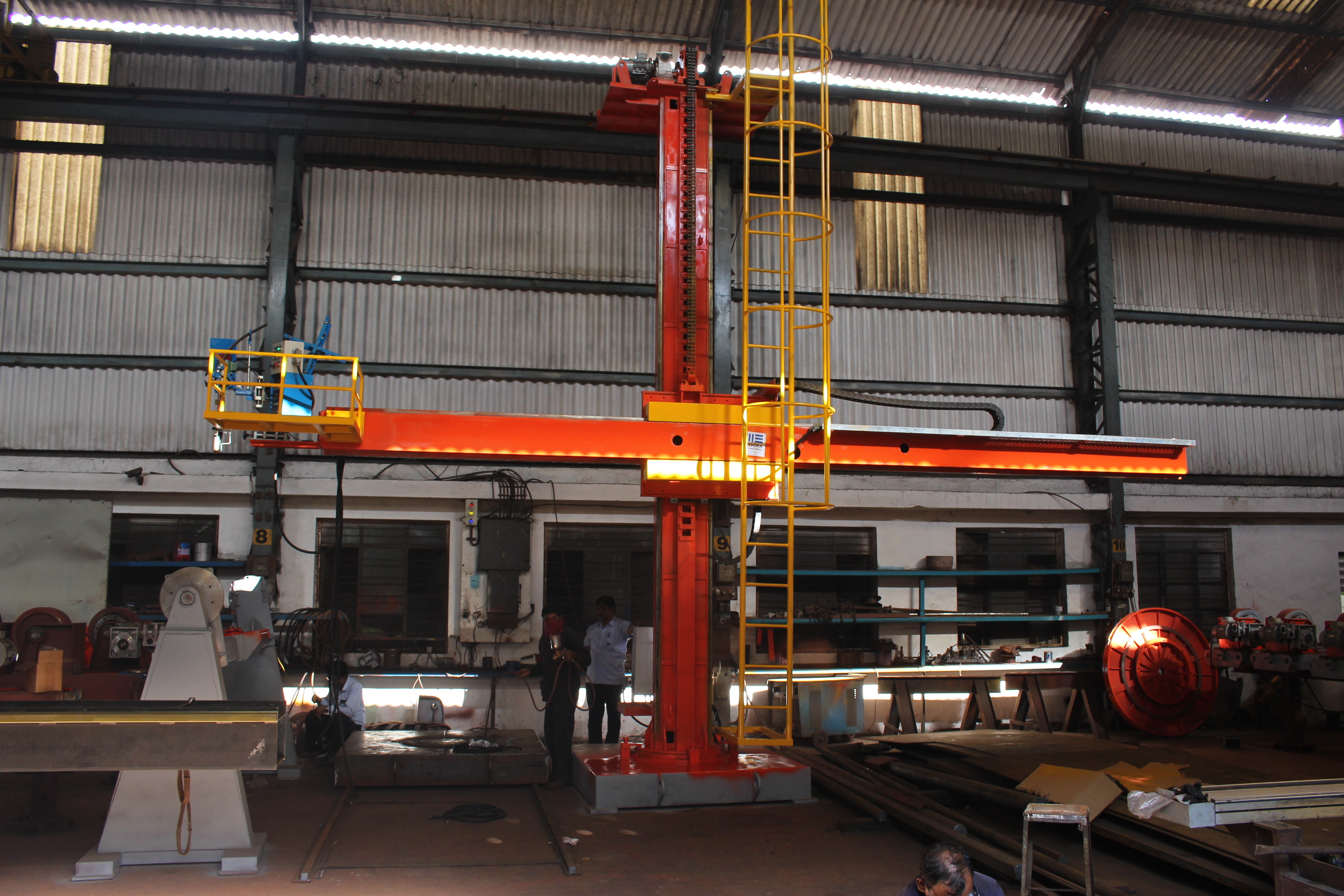

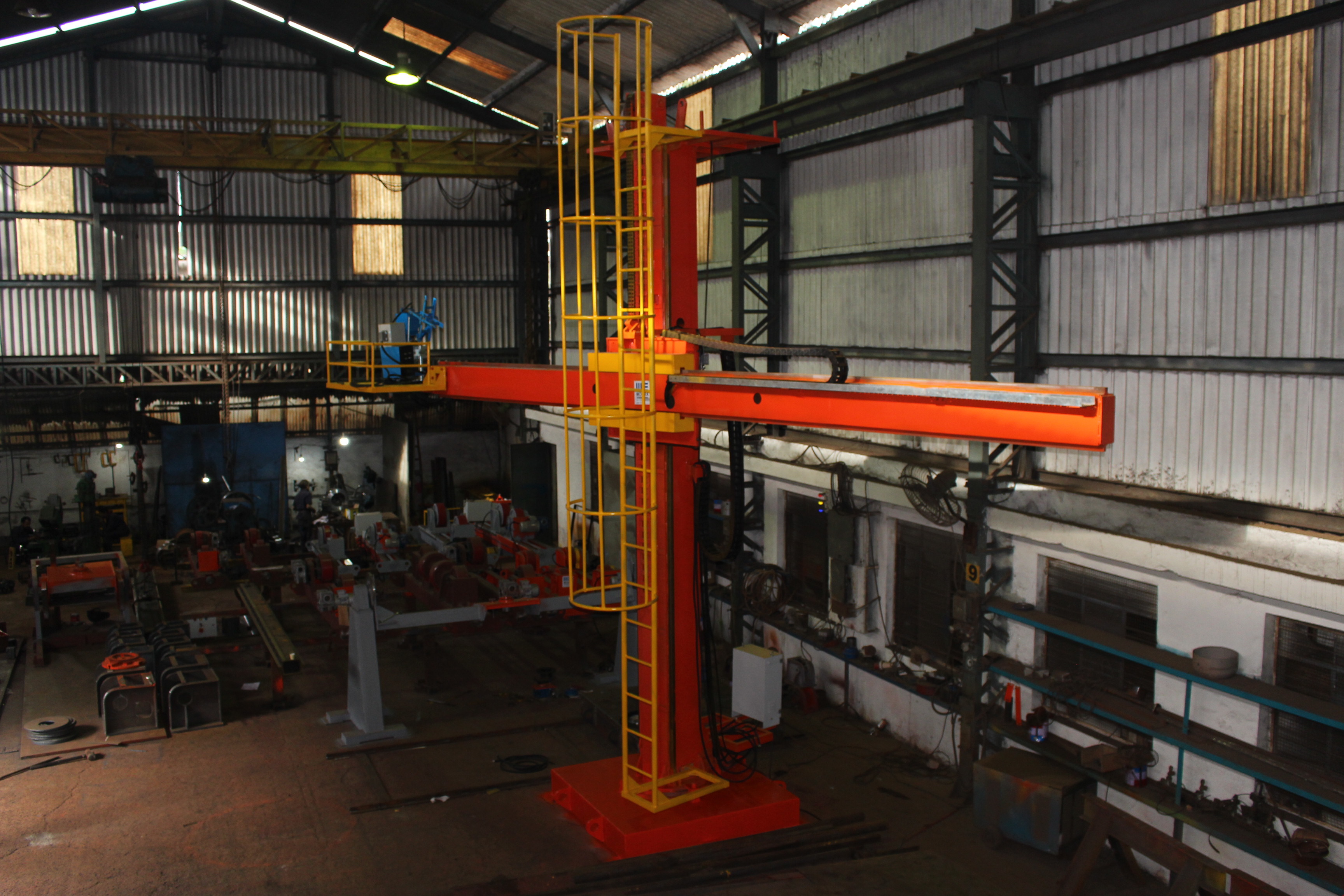

Welding Manipulator

SR. No.

Description

1

Vertical stroke of boom

mm

4000

2

Horizontal stroke of boom

mm

6000

3

Min. height of under boom from rail top - (Min.)

mm

1000

4

Max. Height of under boom from rail top - (Max.)

mm

5000

5

Min. distance between column and boom face - (Min.)

Mm

650

6

Max. Distance between column and boom face (Max.)

Mm

6650

7

Horizontal travel speed of boom A.C. Variable speed

mm/min

100 to 1000

8

Vertical travel speed of boom ( fixed Speed)

mm/min

1000

9

Column swivel range

Degree

360

10

Total of boom (with 250kg weight)

mm

10mm (Max.)

    11

Vertical Movement

By Chain Sprocket & Counter weight

    12

Horizontal Movement

By rack & Pinion
