5 Ton Welding Rotator

Name: 5 Ton Welding Rotator
Brand: MOGRA ENGINEERING PVT. LTD.
Price: 600000 INR
Availability: InStock

2,04,000 INR/Unit

Get a Price/Quote

Product Details:

Diameter 100–3200 mm
Application Pipe, Tank, Vessel, and Cylinder Welding
Power Consumption 1.5 kW/hr
Output Voltage 415 V
Power Source Electric
Welding Rotational Welding Support
Phase Three Phase
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

5 Ton Welding Rotator Price And Quantity

Minimum Order Quantity 1 Unit
Price 2,04,000 INR/Unit

5 Ton Welding Rotator Product Specifications

Type Welding Rotator
Diameter 100–3200 mm
Application Pipe, Tank, Vessel, and Cylinder Welding
Motor Type AC Electric Motor
Input Voltage 415 V AC
Voltage 415 V
Power 1.5 kW
Material Mild Steel
Welding Rotational Welding Support
Rated Current 5 A
Dimensions 1600 mm x 800 mm x 900 mm
Condition New
Phase Three Phase
Automation Grade Semi-Automatic
Frequency 50 Hz
Output Voltage 415 V
Power Source Electric
Equipment Type Welding Rotator
Rated Capacity 5 Ton
Power Consumption 1.5 kW/hr
Current Range 50–400 A

Speed Range 120-1200 mm/min
Mounting Type Base Mounted
Turning Capacity 5,000 kg
Number of Drive Rollers 1
Noise Level <75 dB
Number of Idler Rollers 1
Protection Class IP54
Control System Remote Pendant
Paint Finish Anti-Corrosive
Ambient Temperature 0-50C
Customization Available
Drive Transmission Gearbox Driven
Max Wheel Load 2500 kg/roller
Roller Material PU Coated / Steel Rollers

5 Ton Welding Rotator Trade Information

Supply Ability 12 Unit Per Month
Delivery Time 4-5 Week

Other Products in 'Welding Rotators' category

Heavy Duty Welding Rotator Price : 2,00,000 INR/Unit Minimum Order Quantity : 1 Condition : New Motor Type : Other, AC Electric Motor Type : Heavy Duty Welding Rotator Material : Alloy Steel Power : 7.5 kW Dimensions : 4500 x 1400 x 900 mm Rated Current : 16 A Welding : Other, Suitable for SAW, MIG and TIG Phase : 3 Phase Voltage : 380 V Input Voltage : 380 V Application : Rotating Pipes, Vessels and Cylindrical Jobs for Welding Diameter : 500 mm to 5000 mm Equipment Type : Welding Rotator Current Range : 50800 A Power Consumption : Low Power Consumption Rated Capacity : 40 Tons Automation Grade : SemiAutomatic Power Source : Electric Frequency : 50 Hz Output Voltage : Variable Control

Send Inquiry

Welding Rotator 60 Mt Capacity With Motorised Trolley Price : 6,95,000 INR/Unit Minimum Order Quantity : 1 Condition : New Motor Type : Other, Electric Motor Type : Welding Rotator Material : Heavy Duty Steel Power : 7.5 kW (approx.) Dimensions : Approx. 4300 mm x 1100 mm x 1250 mm Rated Current : 12 A (approx.) Welding : Other, Rotary Welding Support Phase : Three Phase Voltage : 415 V Input Voltage : 415 V AC Application : Rotating and positioning heavy cylindrical components during welding Diameter : Suitable for 500 mm to 4500 mm workpiece diameter Equipment Type : 60 Mt Welding Rotator With Motorised Trolley Current Range : Adjustable as per drive system Power Consumption : Approx. 7.5 kW Rated Capacity : 60 Mt (Metric Tonnes) Automation Grade : SemiAutomatic Power Source : Electric Frequency : 50 Hz Output Voltage : 415 V

Send Inquiry

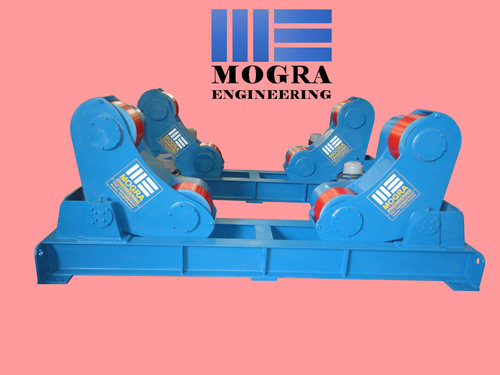

Self Aligning Welding Rotators Price : 36,86,000 INR/Unit Minimum Order Quantity : 1 Condition : New Motor Type : Other, AC Electric Motor Type : Self Aligning Welding Rotator Material : Mild Steel, Rubber Roller Power : 4 kW (Standard models, customizable) Dimensions : Customizable as per capacity model Rated Current : up to 10A Welding : Other, Suitable for SAW/MIG/MAG/TIG processes Phase : Three Phase Voltage : 380V / 415V (standard) Input Voltage : 380V / 415V Application : Cylindrical workpiece rotation for welding, assembly, painting Diameter : Suitable for tank diameter 300mm 5000mm (varies by model) Equipment Type : Welding Rotator Current Range : Standard 60A to 300A (custom options) Power Consumption : Standard as per model energy efficient Rated Capacity : 5 Ton to 200 Ton (as per model) Automation Grade : Automatic / Semiautomatic Power Source : Electric Frequency : 50/60 Hz Output Voltage : As per motor (typically 24V control transformer for panel)
