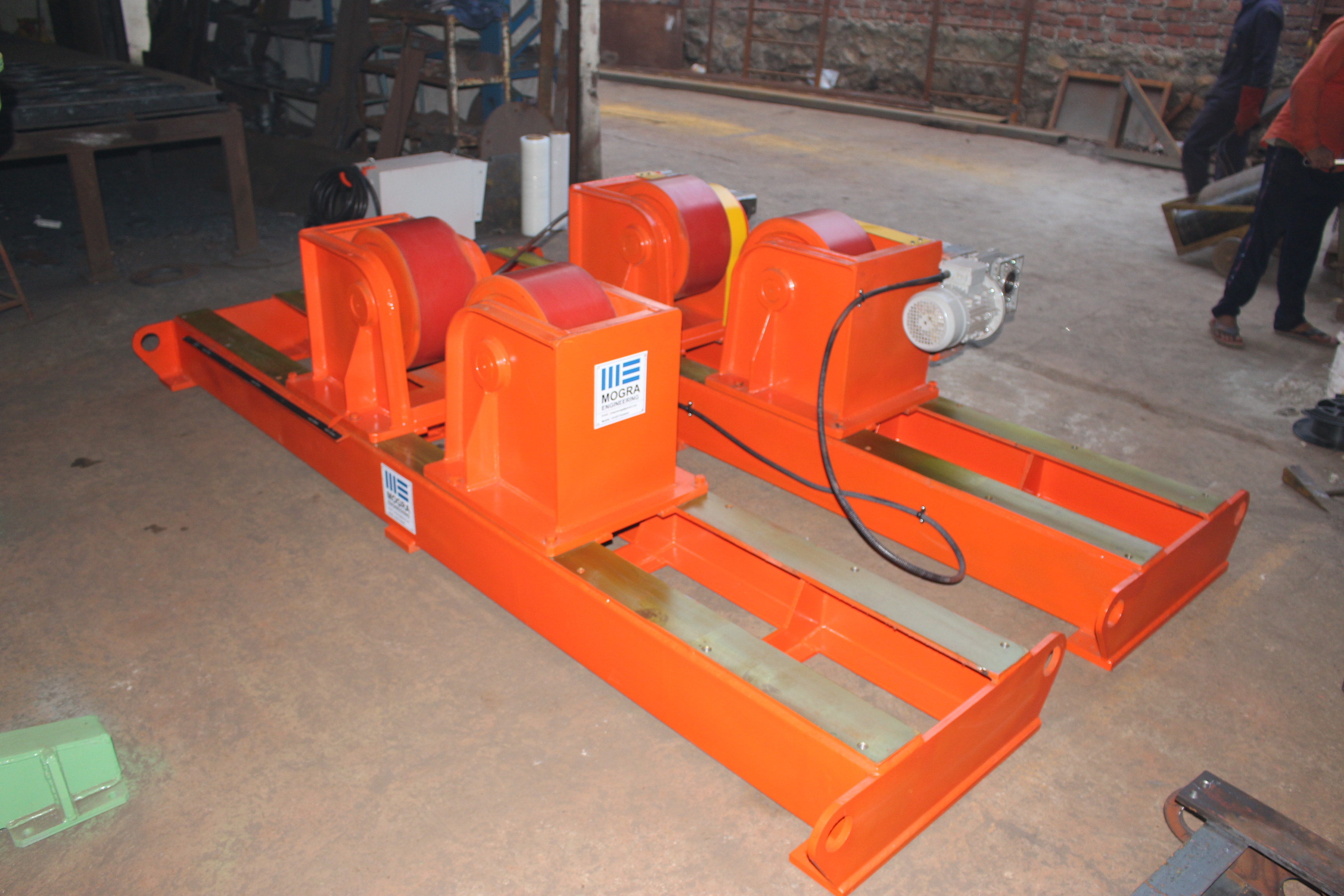

TECHNICALSPECIFICATION OF CONVENTIONAL TYPE WELDING ROTATOR
MODEL-WRC-40
|
1
|
Rotating capacity - Drive Unit
|
Tonne
|
40
|
|
2
|
Load carrying capacity - Drive unit
|
Tonne
|
20
|
|
3
|
Load carrying capacity - Idler unit
|
Tonne
|
20
|
|
4
|
Job Diameter Range
|
mm
|
400 to 5000
|
|
5
|
Surface Speed Range of Wheel
|
mm/Min
|
100 to 1000
|
|
6
|
PU. Roller size (‘R’ Dia. x ‘T’ width)
|
mm
|
400Ø x 200
|
|
7
|
No. of Wheel Per Axle
|
No.
|
1
|
|
8
|
Material Of Wheel
|
-
|
Polyurethane Shore A , Hardness -95
|
|
9
|
Overall length of drive unit –(L)
|
mm
|
3500
|
|
10
|
Overall length of idler unit –(L1)
|
mm
|
3100
|
|
11
|
Overall width of drive unit –(W)
|
mm
|
700
|
|
12
|
Overall width of idler unit –(W1)
|
mm
|
700
|
|
13
|
Overall height of drive unit –(H)
|
mm
|
725
|
|
14
|
Overall height of idler unit –(H1)
|
mm
|
725
|
|
15
|
Drive Motor
|
HP
|
1.5 x 2 Nos.
|
|
16
|
Controls on Panel
|
-
|
1) Mains on/off,
|
|
2) RYB indication lamp,
|
|
3) Emergency off,
|
|
4) Pendent With 10 Mtr Cable
|
|
17
|
Controls on Pendent
|
-
|
1) Rotation For/Rev. Selector switch
|
|
2) Rotation Inch / Run Selector witch
|
|
3) Speed setting potentiometer
|
|
4) Rotation start Push button
|
|
5) Rotation stop push button
|
|
18
|
Wheel Adjustment for Different Job Diameter
|
-
|
Manually bolted over the Base frame
|
|
20
|
Reduction Gear Boxes Make
|
-
|
Bonvario / Altra or Equivalent
|
|
21
|
Motor Make
|
-
|
Bonvario , Siemens or Equivalent
|
|
22
|
Bearings
|
-
|
SKF/FAG or Equivalent
|
|
23
|
AC Drive
|
-
|
Delta or Equivalent
|
|
24
|
Switchgears
|
-
|
Siemens / Teknic / L&T or Equivalent
|
|
25
|
No.of Setting
|
-
|
4 Nos
|
